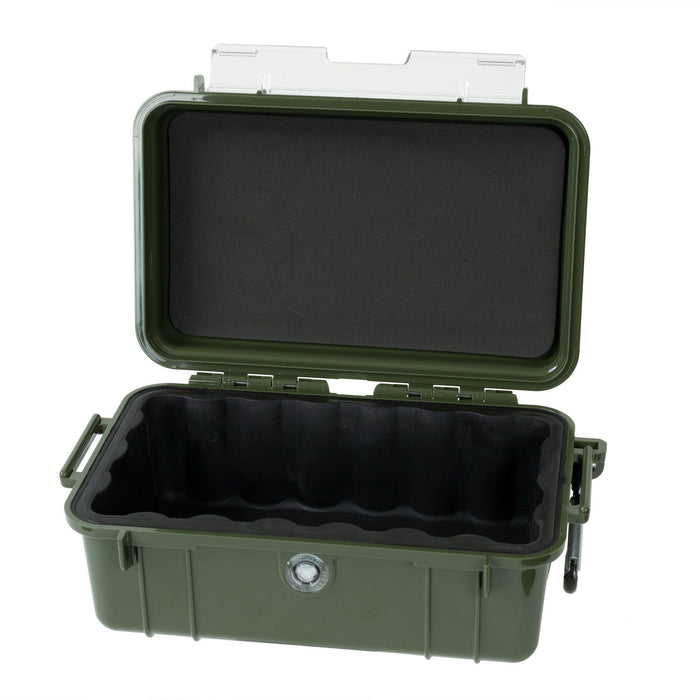

Pelican 1050 Micro Case, OD Green

Pelican™ 1050 Micro Case

• Interior: 6.31" x 3.68" x 2.75"
• Weight: 0.81 lbs
• Series: Protector Case
• Color: OD Green

• Features
• Dimensions
• Specs
• Accessories
• Drawings

• • Watertight rubber O-ring seal, crush-proof, and dust-proof
  • Automatic pressure equalization/purge valve that balances air pressure inside the case
  • Open-cell core with solid walls designed to make a strong yet lightweight polycarbonate case
  • One easy to open throw latch
  • Stainless steel hinge pins
  • Genuine Pelican™ product with lifetime warranty
• • Lid Depth: 0.69" (1.8 cm)
  • Bottom Depth: 1.94" (4.9 cm)
  • Total Depth: 2.63" (6.7 cm)
  • Interior (L X W X D): 6.31" x 3.68" x 2.75" (16 x 9.3 x 7 cm)
  • Exterior (L X W X D): 7.99" x 5.06" x 3.12" (20.3 x 12.9 x 7.9 cm)
  • Weight (Empty): .81 lbs (0.4 kg)
• • Internal Volume: 0.04 ft³
  • Buoyancy: 1.74 lbs
  • Case Material: Polycarbonate
  • Latch Material: Xylex
  • Pins Material: Stainless Steel
  • Purge Body Material: Polycarbonate
  • Purge Vent Material: Polyester Spun-Bond ePTFE Oleophobic

• Rubber Liner

  • Pelican 1050 Rubber Liner protects your items and also is the o-ring seal for the case. The liner can be removed from the case for cleaning.

  Pick & Pluck Foam

  • Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.

  Solid Foam

  • Solid Foam is a 1.3 lb polyurethane foam without any perforations. It is perfect for cutting out custom shapes to fit your items.

• Download CAD Drawings*

  • Pelican 1050 Lid Dimensional Drawing
  • Pelican 1050 Base Dimensional Drawing



  *CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
