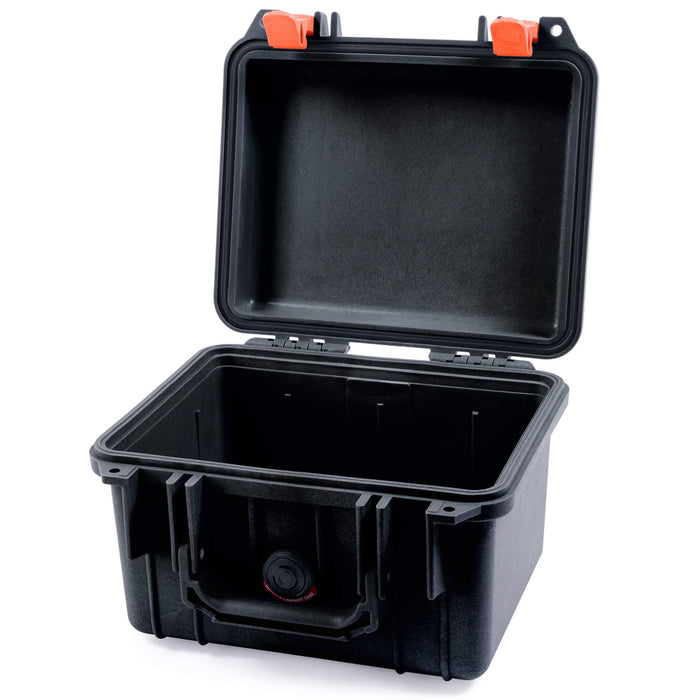

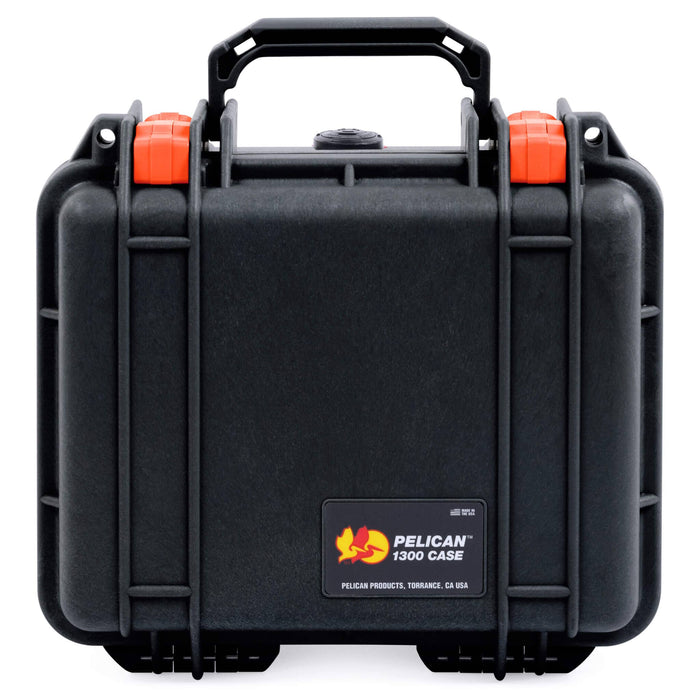

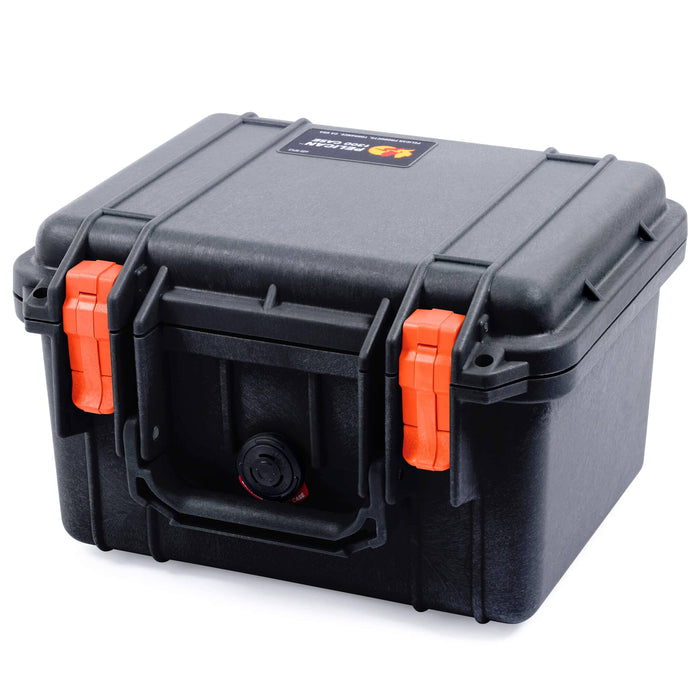

Pelican 1300 Case, Black with Orange Latches

Pelican™ 1300 Hard Case

• Interior: 9.17" x 7.00" x 6.12"
• Weight: 3.09 lbs
• Series: Protector Case
• Case Color: Black
• Latches Color: Orange

• Features
• Dimensions
• Specs
• Accessories
• Drawings

• • Watertight rubber O-ring seal, crush-proof, and dust-proof
  • Automatic pressure equalization/purge valve that balances air pressure inside the case
  • Open-cell core with solid walls designed to make a strong yet lightweight polypropylene case
  • Two easy to open double-throw latches
  • Stainless steel hinge pins
  • Genuine Pelican™ product with lifetime warranty
• • Lid Depth: 1.18" (3 cm)
  • Bottom Depth: 4.93" (12.5 cm)
  • Total Depth: 6.12" (15.5 cm)
  • Interior (L X W X D): 9.17" x 7.00" x 6.12" (23.3 x 17.8 x 15.5 cm)
  • Exterior (L X W X D): 10.62" x 9.68" x 6.87" (27 x 24.6 x 17.4 cm)
  • Weight (Empty): 3.09 lbs (1.4 kg)
• • Internal Volume: 0.23 ft³
  • Buoyancy: 12.35 lbs
  • Case Material: Polypropylene
  • Latch Material: ABS
  • Pins Material: Stainless Steel
  • Purge Body Material: ABS
  • Purge Vent Material: 3 Micron Hydrophobic Non-Woven

• Zipper Lid Pouch

  • 9" x 7" x 2" single zipper pouch
  • Installs with included Velcro strips



  Pick & Pluck Foam

  • Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.



  TrekPak Divider System

  • Custom length perimeter insert for Pelican 1300, one (1) divider insert 9" in length, & two (2) divider inserts 8" in length
  • One cutter tool, 10 pins, & 10 red pull tabs
  • Polyurethane bottom foam

• Download CAD Drawings*

  • Pelican 1300 Lid Dimensional Drawing
  • Pelican 1300 Base Dimensional Drawing



  *CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
