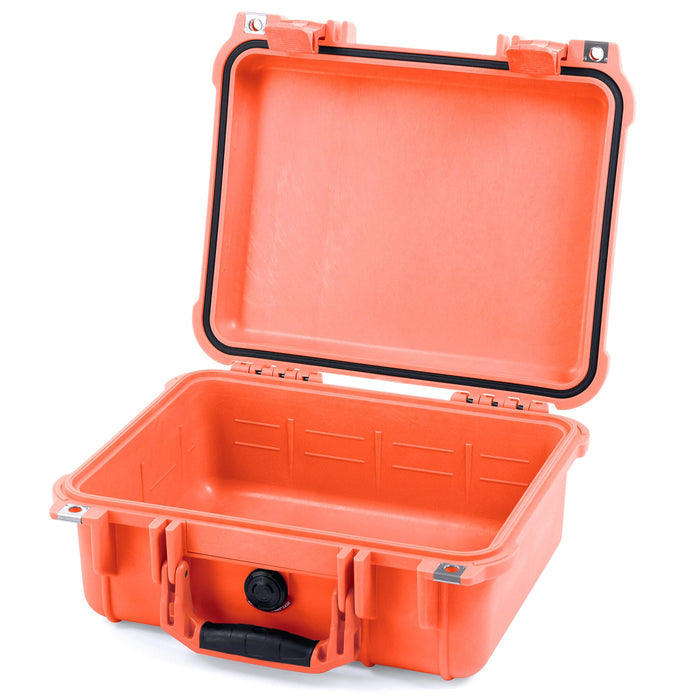

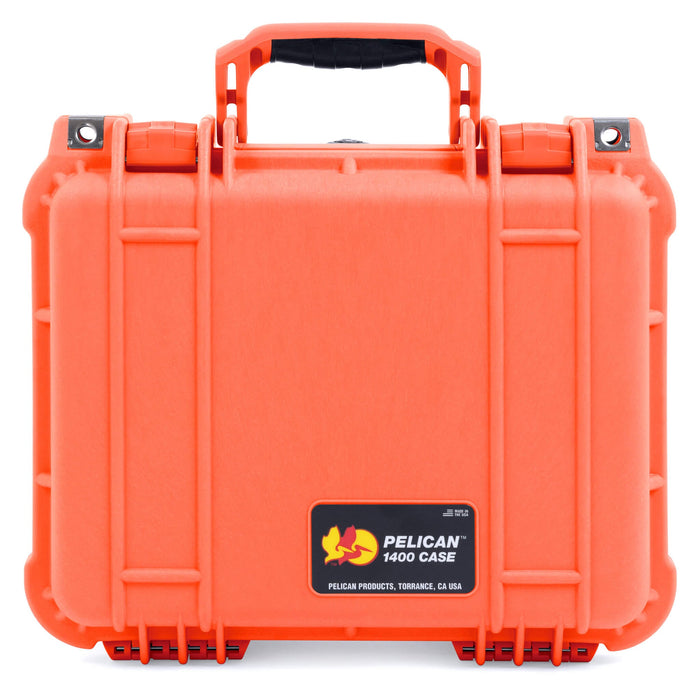

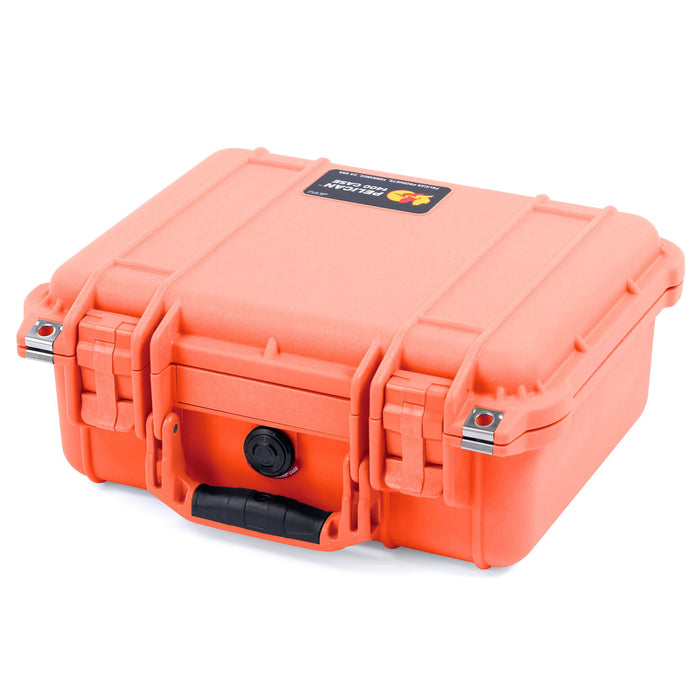

Pelican 1400 Case - Orange

Pelican™ 1400 Hard Case

• Interior: 11.81" x 8.87" x 5.18"
• Weight: 3.97 lbs (Empty)
• Waterproof Certification: IP67
• Series: Protector Case
• Color: Orange

• Features
• Dimensions
• Specs
• Accessories
• Drawings

• • Watertight rubber O-ring seal, crush-proof, and dust-proof
  • Automatic pressure equalization/purge valve that balances air pressure inside the case
  • Open-cell core with solid walls designed to make a strong yet lightweight polypropylene case
  • Two easy to open double-throw latches
  • Stainless steel hinge pins
  • Genuine Pelican™ product with lifetime warranty
• • Lid Depth: 1.18" (3 cm)
  • Bottom Depth: 4.00" (10.2 cm)
  • Total Depth: 5.18" (13.2 cm)
  • Interior (L X W X D): 11.81" x 8.87" x 5.18" (30 x 22.5 x 13.2 cm)
  • Exterior (L X W X D): 13.37" x 11.62" x 6.00" (34 x 29. 5 x 15.2 cm)
  • Weight (Empty): 3.97 lbs (1.8 kg)
• • Internal Volume: 0.31 ft³
  • Buoyancy: 20.06 lbs
  • Case Material: Polypropylene
  • Latch Material: ABS
  • Pins Material: Stainless Steel
  • Purge Body Material: ABS
  • Purge Vent Material: 3 Micron Hydrophobic Non-Woven

• Pick & Pluck Foam

  • Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.



  TrekPak Divider System

  • Custom length perimeter insert for Pelican 1400, two (2) divider inserts 11.5" in length, & one (1) divider insert 6" in length
  • One cutter tool, 10 pins, & 10 red pull tabs
  • Polyurethane bottom foam

• Download CAD Drawings*

  • Pelican 1400 Lid Dimensional Drawing
  • Pelican 1400 Base Dimensional Drawing



  *CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
