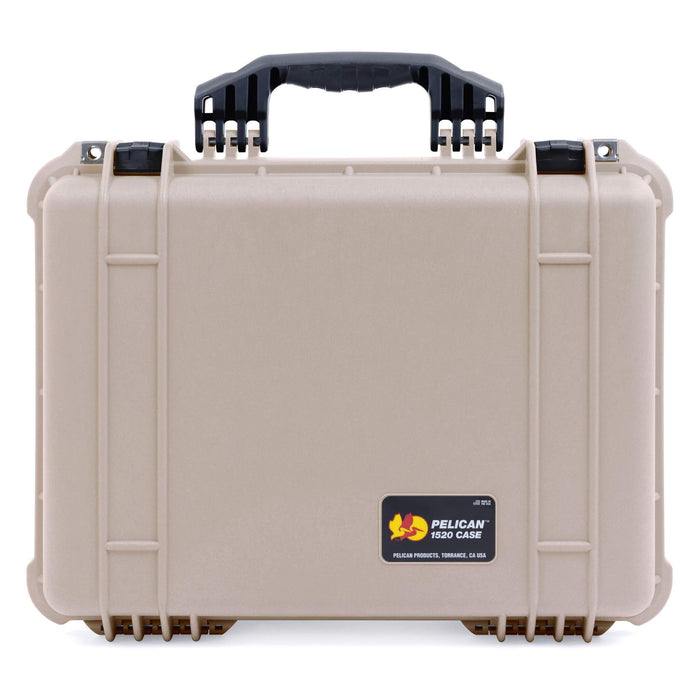

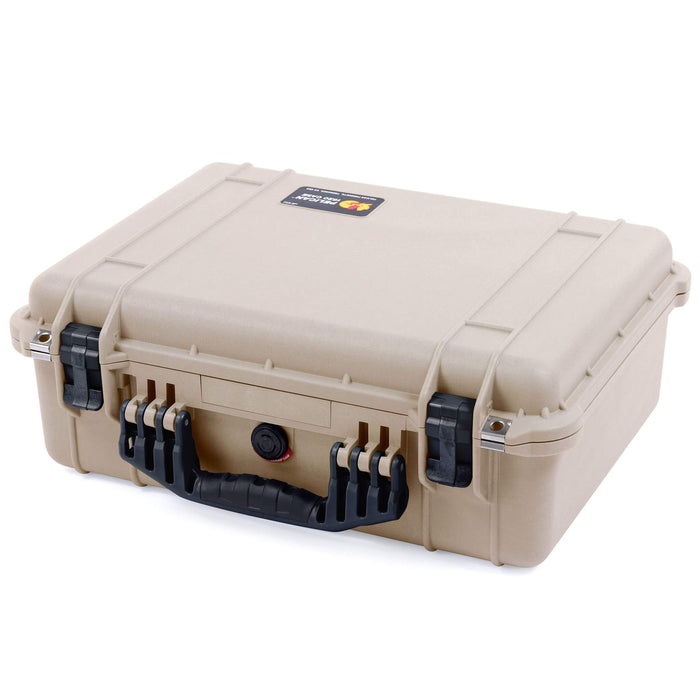

Pelican 1520 Case, Desert Tan with Black Handle & Latches

Pelican™ 1520 Hard Case

• Interior: 18.06" x 12.89" x 6.72"
• Weight: 8.29 lbs (Empty)
• Waterproof Certification: IP67
• Series: Protector Case
• Case Color: Desert Tan
• Handle & Latches Color: Black

• Features
• Dimensions
• Specs
• Accessories
• Drawings

• • Watertight rubber O-ring seal, crush-proof, and dust-proof
  • Automatic pressure equalization/purge valve that balances air pressure inside the case
  • Open-cell core with solid walls designed to make a strong yet lightweight polypropylene case
  • Two easy to open double-throw latches
  • Stainless steel hinge pins
  • Genuine Pelican™ product with lifetime warranty
• • Lid Depth: 1.79" (4.5 cm)
  • Bottom Depth: 4.93" (12.5 cm)
  • Total Depth: 6.72" (17.1 cm)
  • Interior (L X W X D): 18.06" x 12.89" x 6.72" (45.9 x 32.7 x 17.1 cm)
  • Exterior (L X W X D): 19.78" x 15.77" x 7.41" (50.2 x 40.1 x 18.8 cm)
  • Weight (Empty): 8.29 lbs (3.8 kg)
• • Internal Volume: 0.91 ft³
  • Buoyancy: 63.00 lbs
  • Case Material: Polypropylene
  • Latch Material: ABS
  • Pins Material: Stainless Steel
  • Purge Body Material: ABS
  • Purge Vent Material: 3 Micron Hydrophobic Non-Woven

• Mesh Lid Organizer

  • Five mesh zipper pockets, plastic backing
  • Installs with two industrial strength Velcro strips



  Computer Lid Pouch

  • Fits laptop computers up to 15" x 11"
  • Removable computer pouch with plastic backing
  • Installs with two industrial strength Velcro strips



  Pick & Pluck Foam

  • Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.



  TrekPak Divider System

  • Custom length perimeter insert for Pelican 1520, two (2) divider inserts 17" in length, & two (2) divider inserts 15" in length
  • One cutter tool, 20 pins, & 20 red pull tabs
  • Polyurethane bottom foam



  Gray Microfiber Padded Dividers

  • 4" deep black & gray adjustable microfiber dividers with 3/4" thick perimeter padding & 3/4" thick bottom padding
  • Two (2) 12" long, 3/4" thick padded, hinged microfiber dividers
  • Nine (9) 5" long, 3/4" thick padded microfiber dividers
  • Six (6) 3" long, 3/4" thick padded microfiber dividers
  • Six (6) 6" long, elastic Velcro straps

• Download CAD Drawings*

  • Pelican 1520 Lid Dimensional Drawing
  • Pelican 1520 Base Dimensional Drawing



  *CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
