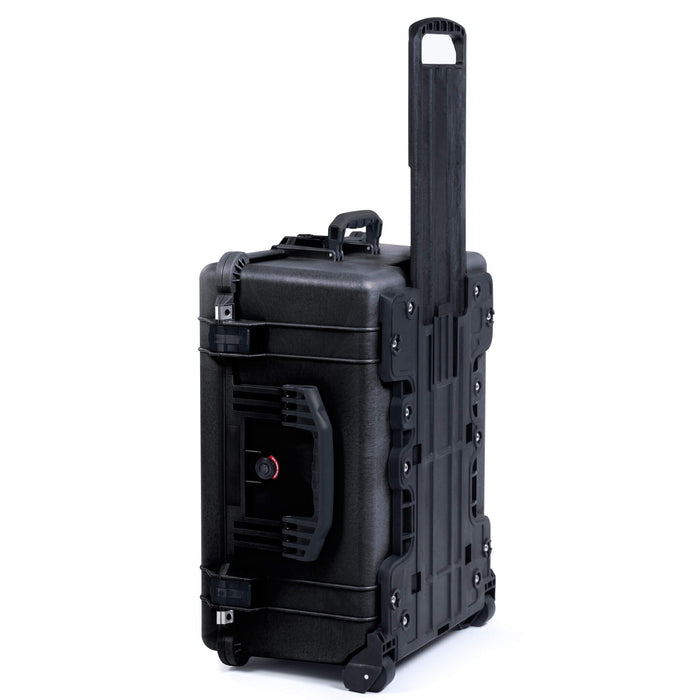

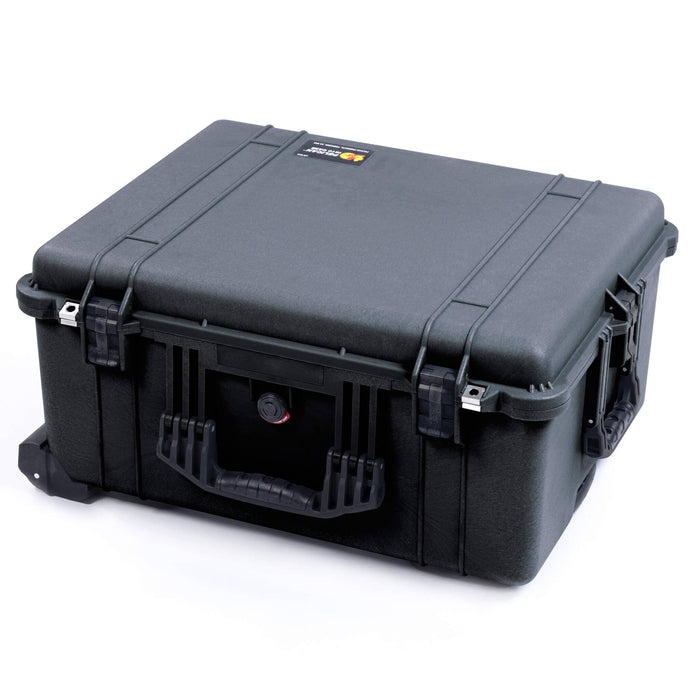

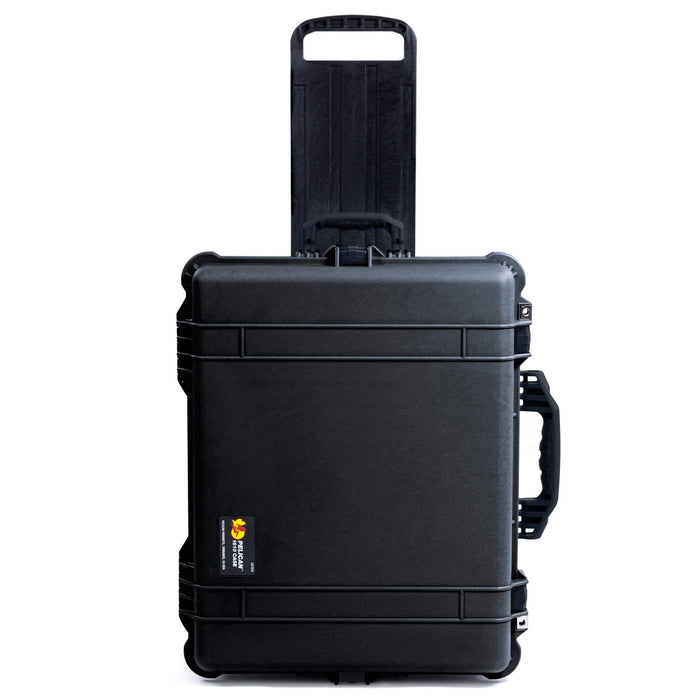

Pelican 1610 Case, Black

Pelican™ 1610 Hard Case

• Interior: 21.78" x 16.69" x 10.62"
• Weight: 19.5 lbs
• Series: Protector Case
• Color: Black
• Latches Style: Double-Throw
• Wheels: Yes (2)
• Extendable Trolley Handle: Yes

• Features

• Dimensions

• Specs

• Accessories

• Drawings

• • Watertight rubber O-ring seal, crush-proof, and dust-proof
  • Automatic pressure equalization/purge valve that balances air pressure inside the case
  • Open-cell core with solid walls designed to make a strong yet lightweight polypropylene travel case
  • Retractable 16" extension handle and polyurethane wheels with stainless steel bearings for rolling travel
  • Four easy to open double-throw latches
  • Ergonomic comfort grip rubber over-molded handles
  • Stainless steel hinge pins and reinforced padlock protectors
  • Genuine Pelican™ product with lifetime warranty
• • Lid Depth: 2.05" (5.2 cm)
  • Bottom Depth: 8.57" (21.8 cm)
  • Total Depth: 10.62" (27 cm)
  • Interior (L X W X D): 21.78" x 16.69" x 10.62" (55.3 x 42.4 x 27 cm)
  • Exterior (L X W X D): 24.83" x 19.69" x 11.88" (63.1 x 50 x 30.2 cm)
  • Weight (Empty): 19.50 lbs (8.8 kg)
• • Internal Volume: 2.23 ft³
  • Buoyancy: 119.93 lbs
  • Case Material: Polypropylene
  • Latch Material: ABS
  • Pins Material: Stainless Steel
  • Purge Body Material: ABS
  • Purge Vent Material: 3 Micron Hydrophobic Non-Woven
  • Wheels Material: Polyurethane, Stainless Steel
  • Extendable Handle Material: Polypropylene

• ColorCase Mesh Lid Organizer

  • Five mesh zipper pockets, plastic backing
  • Installs with 6 included screws



  Pick & Pluck Foam

  • Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.



  TrekPak Divider System

  • Custom length perimeter insert for Pelican 1610, two (2) divider inserts 23" in length, & two (2) divider inserts 8" in length
  • One cutter tool, 30 pins, & 30 red pull tabs
  • Polyurethane bottom foam



  ColorCase Gray Padded Microfiber Dividers

  • 7" deep black & gray adjustable microfiber dividers with 3/4" thick perimeter padding & 3/4" thick bottom padding
  • Three (3) 15.25" long, 3/4" thick hinged microfiber dividers
  • Twelve (12) 4.75" long, 3/4" thick microfiber dividers
  • Ten (10) 3.5" long, 3/4" thick microfiber dividers
  • Six (6) 6" long, elastic Velcro straps



• Download CAD Drawings*

  • Pelican 1610 Lid Dimensional Drawing
  • Pelican 1610 Base Dimensional Drawing



  *CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
